How to Manage varital cluster from Varitas cluster Manager ( NFS) -Part-3



Manages Varitas cluster form Varitas cluster Manager

Install cluster mange console on your laptop or any other system from which you want to manage the cluster. This tool will be available on veritas software.zip

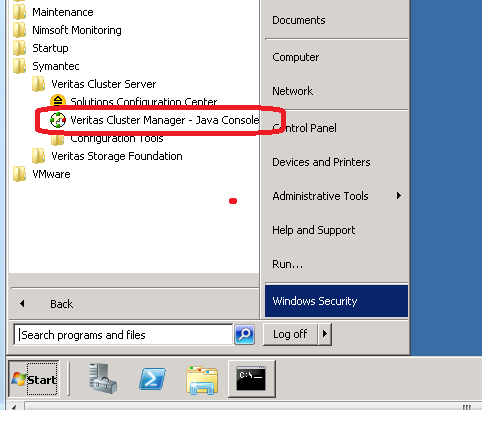

1. Open veritas cluster Manager

2. Add cluster (enter cluster IP) and click ok

3.Provide credential veritas admin

4.  Now We are login here  successfully and cluster running on vcsnode1

11. Now configure the veritas share volume & NFS service

Step-1-  Right click on vcscluster1🡪click on add service Group as show



Stap-2 Enter service group name VCSNFS01🡪 add server vcsnode1 & vcsnode2 🡪 chose startup🡪 choose service group type here I am choosing failover🡪 click ok



Now service group added successfully

Stap-3 Now add resource in the service group

1. Add NIC

 Right click vcsnfs01🡪click add resource 🡪 Type Resource name🡪choose Resource type 🡪edit attribute device

2. Add IP

2. Right click vcsnfs01🡪click add resource 🡪 Type Resource name🡪choose Resource type 🡪add attribute value.

Device 🡪 eth0

Address🡪192.168.16.145

Netmask🡪255.255.255.0

3. Add Disk Group

Right click vcsnfs01🡪click add resource 🡪 Type Resource name🡪choose Resource type🡪add attribute value.

Disk Group🡪 vcsgp (group name)

4. Add volume1

 Right click vcsnfs01🡪click add resource 🡪 Type Resource name🡪choose Resource type🡪add attribute value.

DiskGroup🡪vcsgp

Volume🡪vcsvol01



5. Add volume2

 Right click vcsnfs01🡪click add resource 🡪 Type Resource name🡪choose Resource type🡪add attribute value.

DiskGroup🡪vcsgp

Volume🡪vcsvol02

6. Mount volume1 with mount point.

 Right click vcsnfs01🡪click add resource 🡪 Type Resource name🡪choose Resource type🡪add attribute value.

MountPoint 🡪 /vcsshare01

BlockDevice🡪 /dev/vx/dsk/vcsgp/vcsvol01

FSType        🡪  vxfs

FsckOpt      🡪 -n

7. Same Mount volume2 with mount point.

 Right click vcsnfs01🡪click add resource 🡪 Type Resource name🡪choose Resource type🡪add attribute value.

MountPoint 🡪 /vcsshare02

BlockDevice🡪 /dev/vx/dsk/vcsgp/vcsvol02

FSType        🡪  vxfs

FsckOpt      🡪 -n

Click ok

Now rescue group configuration done and all resource are online on vcsnode1

8. Now go to node1 and check volume is mounted.

# df –k

[root@vcsnode1 ~]# showmount  –e  10.112.16.145   #here show the output like

10.112.16.145:/mnt/veritasvol01/vtrsvcsvol01/vcsshare01

[root@vcsnode1 ~]#  vi /etc/fstab

 10.112.16.145:/mnt/veritasvol01/vtrsvcsvol01/vcsshare01   /vcslock  nfs default  0 0



      [root@vcsnode2 ~]#  vi /etc/fstab

     10.112.16.145:/mnt/veritasvol01/vtrsvcsvol01/vcsshare01   /vcslock  nfs default  0 0

       #mount –a   # Run this command on both node

9. Right click vcsnfs01🡪click add resource 🡪 Type Resource name🡪choose Resource type

Resource name 🡪Service NFS

Resource type 🡪 NFS
